商品の詳細:
|
| Model:: | SKT200 | テーブルのサイズ:: | 100 x 100 cm |
|---|---|---|---|
| 標本 最大重量 ((kg):: | 200kg | 最大加速 (G):: | 600g |
| マックス 加速:: | ハーフサイン 500g | 機械重量:: | 4200kg |
| 電源: | 三相AC380V 50Hz | 機械次元:: | 150*130*260cm |
| ハイライト: | Large Mechanical Shock Testing Machine,Laboratory Mechanical Shock Testing Machine |
||

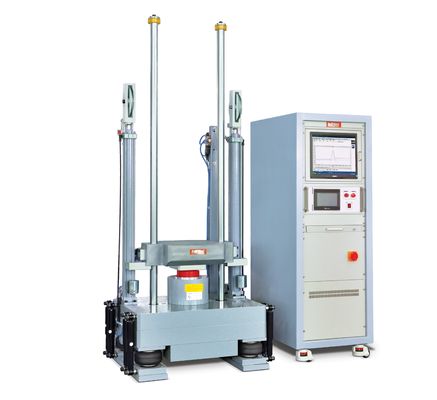

The Model SKT200 Shock Test Equipment offers a large payload capacity and table surface area which makes it extremely versatile for larger products. The Model SKT200 meets or exceeds many industrial, military, and corporate shock-testing standards and specifications.

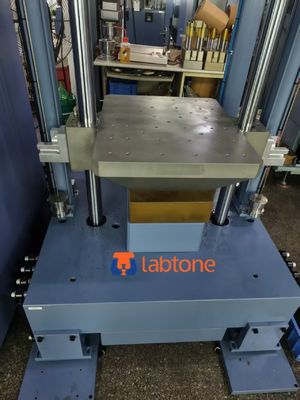

The Model SKT200 table surface is 100 x 100 cm. The standard model can test items weighing up to 200 kg. The optional heavyweight version increases the maximum payload to 1000 kg. Maximum acceleration capability is 500g.
Mode Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 150 | 100 | 100 | 100 | |
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
| Utility | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Requirements | ||||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | |||||||
Applications
Consumer Electronics
Protective Packaging
Shock test System Block Diagram
