商品の詳細:
|
| Model:: | HSKT10D | テーブルのサイズ:: | 210 × 210 |
|---|---|---|---|
| 標本 最大重量 ((kg):: | 10 | ショックパルス: | 半分の正弦 |
| 加速範囲 (m/s2):: | 20-10000 | パルス持続範囲 (ms):: | 0.2~11 |
| ハイライト:: | 機械試験装置,振動・衝撃試験 | ||
| ハイライト: | High Acceleration Shock Test Equipment,IEC62133 Shock Test Equipment,ISTA Shock Test Equipment |
||

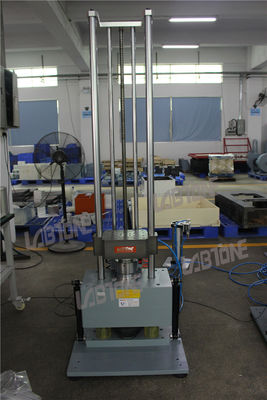

| Model | HSKT10 | HSKT10D |
| Table size (mm) | 200 x200 | 210 x 210 |
| Specimen max weight(kg) | 10 | 10 |
| Shock pulse | Half-sine | |
| Acceleration range (m/s2) | 20----1500 | 20----10000 |
| Pulse duration range (ms) | 0.5~11 | 0.2~11 |
| Seismic base | Pneumatic springs device | |
| Utility reqyurements | AC220V 50Hz 5A Air pressure:more than 0.5Mpa | |
1. Q: What is your warranty ?
2. Q: How-to vedio provided ?
3. Q: Is the machine made in your own plant ?
4. Q: What about the quality ?
Equipment composition:
| No. | Equipment name | Model | Brand | Qty. |
| 1 | Main equipment | PSKA-30 | LABTONE | 1 set |
| 2 | Shock controller | SKC-2 | LABTONE | 1 set |
| 3 | Dual Mass Shock Amplifier | D-3 | LABTONE | 1 set |
| 4 | Shock measurement device | ST-16 | LAB | 1 set |
| 5 | Accelerometer (Sensor) | 3133A5 with connecting cable | DYTRAN | 3 set |
| 6 | Accelerometer (Sensor) | 3200B2T with connecting cable | DYTRAN | 1 set |
| 7 | Control computer | brand computer | 1 set | |
| 8 | Waveform Generator | HB01 | LABTONE | 1 set |
| 9 | Safety device | Audible and visual alarm | LABTONE | 1 set |
| 10 | Attached accessories | Tools, clamps/instructions, installation disc, etc. | LABTONE | 1 set |
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
