商品の詳細:
|
| 製品名：: | ショックテストシステムSKT10HB | テーブルのサイズ:: | 200*250 |
|---|---|---|---|
| 標本 最大重量 ((kg):: | 10 | ショックパルス: | 半分の正弦 |
| 加速範囲（g）：: | 15〜2000g | パルス持続範囲 (ms):: | 0.2~18 |
| ハイライト：: | UN38.3ショックテストシステム、MIL-STD-810ショックテストシステム、USB2.0ショックテスト装置 | ||
| ハイライト: | Shock Test System 5000g UN38.3,Shock Test System MIL-STD-810 compliant,Shock Test System 6000g 0.2ms |
||

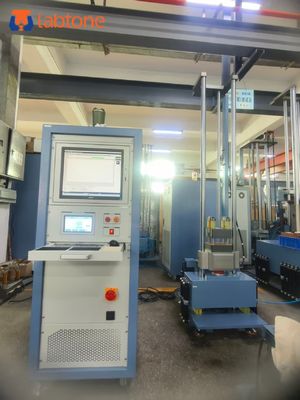

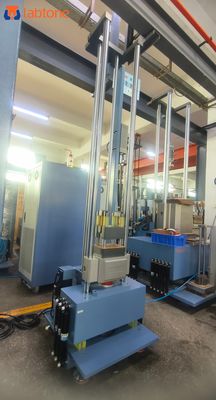

Shock Test System Product description
The SKT series shock test system is mainly applicable to shock resistance tests in such fields as electronic products, battery products, aerospace, ship, military industry, automotive parts and transportation. Shock tests are in form of half sine wave, saw tooth wave or trapezoidal wave. Shock tests can be carried out by selecting different waveform generators. The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, UN38.3, IEC-62281, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
Shock Test System Product Features
Shock Test System Shock testing systems Specifications
| Main parameters of the shock tester SKT10HB | |
| Operating platform | 200mm × 250 mm |
| Payload | 10 Kg |
| Peak acceleration | 15 to 2000g |
| Pulse duration | 0.2~18ms |
| Equipment dimensions | 680 × 740 × 1980 mm |
| Equipment weight | 550 kg |
| Power supply | AC 220V±10% 50Hz,2kVA |
| Air source | great than 0.5Mpa |
| DAS (Data analysis system) | |
| Input channels | 2 channels |
| Sampling frequency | 192KHz |
| Pulse duration | 50-1ms |
| Power functions | Shock Measurement and Analysis |
| Communication interface | USB 2.0 |
| Supportive standard | ISO, UN38.3, MIL-STD-810, user defined |
| Operating system | Microsoft Windows10 |
Shock Test System Analyzer Features
ST series Shock Analyzer is a powerful and tailored instrument for shock events transient capture and analysis. AVANT can meet rigorous criterions in measuring and it is suitable for shock, drop and other kind of impact events.
Based on USB2.0 connectivity, ST_DAS is available for two different models: STH and ST. ST is used for common application with 2 acquisition channels and STH is used for high level shock events measuring and analysis.Provides four analysis modules based on different test standards: Shock Measuring and Analysis, SRS, Pulse Analysis and Damage Boundary test.
Feature
Compatible with ISO, MIL-STD-810 and User defined
Sampling rate up to 1MHz
Acceleration range up to 100,000gn
Power functions: Shock Measurement and Analysis, Shock Response Spectrum (SRS)Analysis, Damage Boundary, Tolerance Analysis and Pass/Fail Judge, Filtering, Multiple Impact Events Recording and Playback, etc.,
Auxiliary function: Force & distortion analysis, Shock Response Time Domain Calculation, FFT Analysis, etc.
Coupling: Voltage, IEPE, Charge, TEDS
Auto Generation of Test Report
USB2.0 Connectivity, Plug and Play
Application
Classical waveform capture and analysis, like half sine, trapezoidal pulse, saw tooth pulse, etc
Shock Response Spectrum (SRS)
Multiple Impact Events Recording and Playback, waveform capture and offline analysis
Tolerance Analysis and Pass/Fail Judge, Tolerance shows on software in real-time
Damage Boundary, strictly complain with ASTM D3332-99 standard

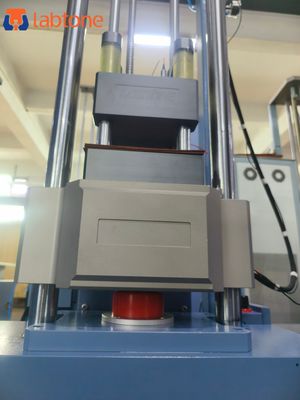

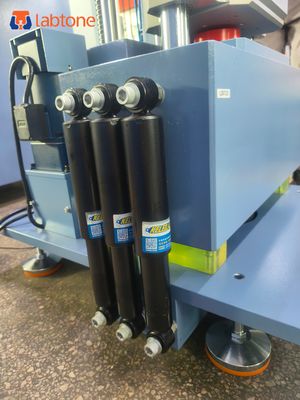

Shock testing systems more details
Service
Pre-Sales Service
1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.
After-Sales Service
1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.
