商品の詳細:
|
| 標本重量 最大: | 50 kg | 機械重量：: | 2300（kg） |
|---|---|---|---|
| 加速範囲 (m/s2):: | 半分の正弦:600G | テーブルのサイズ:: | 50*60 (cm) |
| ハイライト：: | 衝撃および落下試験、機械試験装置 | ||
| ハイライト: | Shock test system for IEC62133,Mechanical shock test system 175g,Battery shock test system 3ms |
||

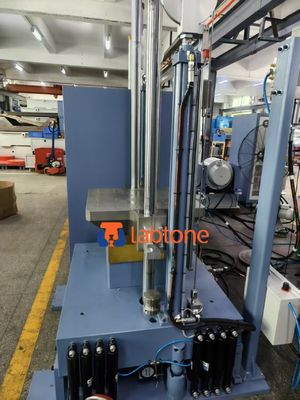

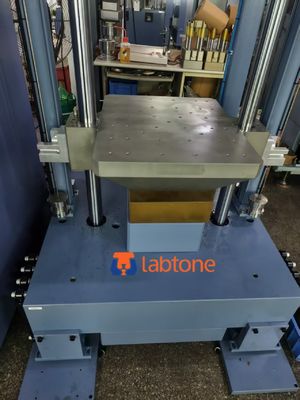

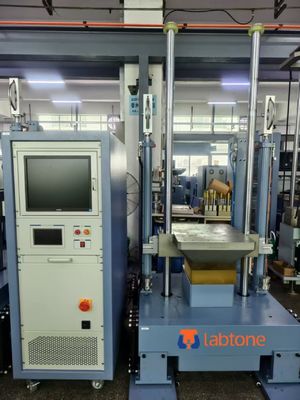

Standard Shock Test System is the most popular model for testing small to mid-size components and systems. The Programmer allows the operator to perform the two shock pulse waveforms commonly used for fragility testing—short duration half sine and long duration trapezoidal shock pulses. The combination of table size, payload capacity, and pulse quality makes this shock test machine the preferred choice for many applications.
Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 150 | 100 | 100 | |
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | ||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | |
| Utility Requirements | 3-phase AC380V 50/60Hz 0.5~0.8MPa | ||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||
Product Features
Shock testing systems Applications:
