商品の詳細:
|
| テーブルのサイズ:: | 300のMm X 300のMm | ショックパルス: | 半分の正弦 |
|---|---|---|---|
| 加速範囲:: | 35000g | 標本 最大重量 ((kg):: | 10kg |
| パルス持続範囲: | 0.2～11ms | ハイライト：: | 衝撃および落下試験、機械試験装置、高加速衝撃試験機 |
Equipment configuration
| No. | Equipment name | Model | Brand | Qty. |
| 1 | Main equipment | G-HSKT30 | LABTONE | 1 set |
| 2 | Shock controller | SKC-2 | LABTONE | 1 set |
| 3 | Dual Mass Shock Amplifier | DMSA-150 | LABTONE | 1 set |
| 4 | Shock measurement device | ST-4 | LAB | 1 set |
| 6 | Accelerometer (Sensor) | 3200B2T with connecting cable | DYTRAN | 1 set |
| 7 | Control computer | brand computer | 1 set | |
| 8 | Waveform Generator | HB01 | LABTONE | 1 set |
| 9 | Safety device | Audible and visual alarm | LABTONE | 1 set |
| 10 | Attached accessories | Tools, clamps/instructions, installation disc, etc. | LABTONE | 1 set |

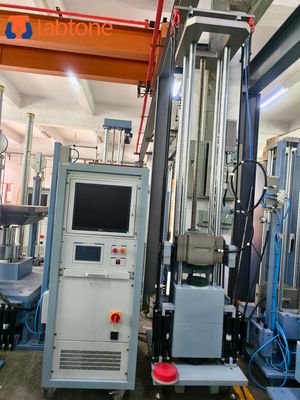

Shock Test Machine Specifications
| Main parameters of the shock tester | |
| Operating platform | 300 × 300 mm |
| Max. load | 30 KG |
| Peak acceleration | 200-100000m/s2 (20 -10000G) |
| Pulse duration | 0.2~11 ms (Half sine wave) |
| Equipment dimensions | 1010 mm x 1530 mm x 2750 mm |
| Equipment weight | 1950 kg |
| Power & Air supply | 3phase 380V±10％ 50Hz,5KVA & 0.5—0.7MPa |
| Dual Mass Shock Amplifier | |
| Table size | 150 x 115 mm |
| Max. load | 3 kg |
| Peak acceleration | 35000G |
| Pulse duration | 0.06—0.5ms |
| Measuring system | |
| Input channels | 4 channels |
| Sampling frequency | 1MHz |
| Input mode | Support voltage, IEPE, Charge signal input directly. |
| Coupled mode | AC, DC, ICP |
| ADC resolution | 16 bits |
| Dynamic range | 80dB |
| harmonic distortion | <-70dB |
| Signal to Noise Ratio | >70dB |
| Pulse duration | Narrow -0.1ms |
| Acceleration range | Up to 100,000gn |
| Frequency accuracy | 0.01% |
| Voltage range | -10Vpeak--+10Vpeak |
| Supportive standard | GB, GJB, MIL-STD, ISO, IEC, user defined |
| Shock waveform | Half-sine |
| Communication interface | USB2.0 |
| Operating system | Win7/10 |
| Type | Shock acceleration sensors |
| Model | 3200B2T |
| Output mode | Charge type |
| Sensitivity | 0.05 mV/g±25% |
| Frequency range | 0.5 to 20K Hz frequency range (±10%) |
| Acceleration range | 50000G |
| Operating environment | -51 to +121℃ |
Company profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
