商品の詳細:
|
| モデルシステム:: | ET-30 | マックス 加速:: | 30g |
|---|---|---|---|
| 最高速度:: | 1.6メートル/秒 | ランダムフォース:: | 550 N （55kg.f） |
| 変位:: | 20 mm | 冷却方法：: | 空気冷却 |
| ハイライト：: | 振動試験サービス,振動振動装置,振動試験機器 | ||
| ハイライト: | compact electrodynamic vibration shaker,education equipment vibration tester,basic vibration engineering test shaker |
||
Description
With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

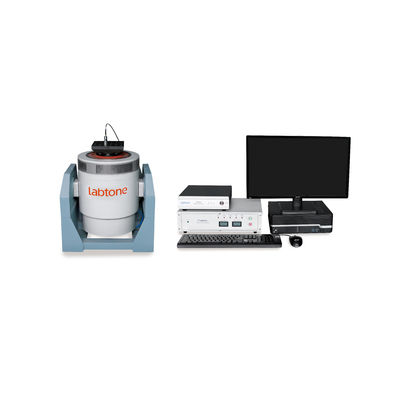

Minitype Vibration Test System
With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
| Item | Configuration | Qty. |
| 1. | Vibration shaker | |
| ET30 Shaker | 1 set | |
| 2. | Digital switch power amplifier | |
| PA502E Power Amplifier | 1 set | |
| 4. | Attached accessories | |
| connecting line | 1 set | |
| Operation instructions, inspection report, certificate, maintenance manual, etc. | 1 set | |
| Special tools | 1 set |
Vibration Test Machine Specification:
| Model | ET-30 |

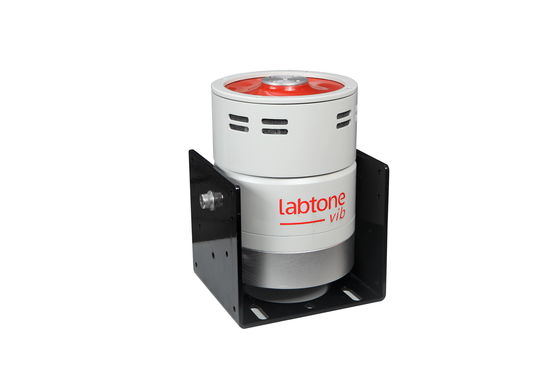

| Shaker Unit | V30 |
|
Peak force[N] (fan is mounted at the bottom of the vibration shaker) |
150 |
|
Peak force[N] (The blower is placed outside) |
300 |
| Frequency[Hz] | 5~6500 |
| Resonance frequency[Hz] | 4800±5% |
| Maximum displacement [mm p-p] | 12 |
| Equivalent mass [kg] | 0.45 |
| Peak acceleration [g] | 65 |
| Weight[kg] | 19 |
| Payload[kg] | 2 |
| Install screw holes[ø mm] | 4*M5 |
| Armature size[ø mm] | 50 |
| Dimension[mm*mm*mm] | 200*265*250 |
| Power Amplifier | PA502E |
| Rated power | 550VA |
| Frequency[Hz] | DC~20k |
| Maximum voltage [V] | 55 |
| Maximum current [A] | 10 |
| Signal input voltage | < 1.5 VRMS |
| Noise-signal ratio | > 90 dB |
| Total harmonic distortion | < 1% |
| Weight[kg] | 15Kg |
| Dimension[mm] | 430*300*100 |
| Maximum power consumption | 820 VA |
| Power supply | AC 220V |
| Efficiency | >94% |
| defencive function | Over pressure, overcurrent, overtemperature, short circuit, over displacement |
