商品の詳細:
|
| テーブルのサイズ:: | 300のMm X 300のMm | ショックパルス: | 半分の正弦 |
|---|---|---|---|
| 加速範囲:: | 20-1500g | 標本 最大重量 ((kg):: | 10kg |
| パルス持続範囲: | 0.5～30ミリ秒 | ハイライト：: | 衝撃および落下試験、機械試験装置、高加速衝撃試験機 |
| ハイライト: | Mechanical shock test machine for computer components,UN38.3 compliant shock testing system,Lab shock tester for electronics |
||
Product description

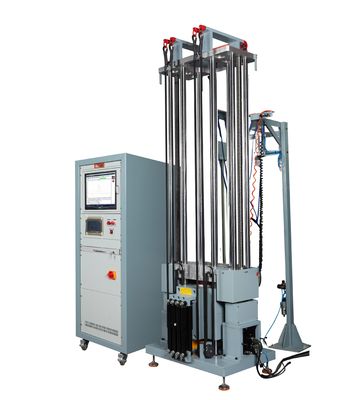

HSKT is the best Shock Machine to make sure the product, smartphones, tablets, computers and others mobiles can withstand shock. Apply high acceleration to computer's parts, Batteries , smart phones, tablets, laptop, cellular phones, and mobile products for product fragility test.
The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
Technical Specifications
| Model | HSKT10 | HSKT30 |
| Table size (mm) | 200x250 | 300x300 |
| Shock pulse | Half sine | |
| Maximum Specimen Weight(Kg) | 10 | 30 |
| Acceleration Range(G) | 20 ~ 2000 | 20 ~ 1500 |
| Pulse Duration (ms) | 0.2~18 | 0.5~30 |
| Machine Dimension(mm) | 660x700x2380 | 720x680x1890 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | |
| Machine Weight(Kg) | 820 | 650 |
