商品の詳細:
|
| 名前: | 簡単操作 RV3000 バッテリーテスト用機械振動試験システム | 振動テーブル（mm）: | 600 x 500 |
|---|---|---|---|
| 振動方向: | の上/dowm | 周波数範囲: | 5-100 Hz |
| 調節可能な変位範囲: | 0-3mmP-P | 受諾可能な加速範囲: | 0-11G |
| Max.Loadingの重量: | 130kg | 操作モード: | 固定/Random/Sweep |
| 電源: | AC 220V 50/60Hz | ||
| ハイライト: | mechanical vibration test system for battery,mechanical shaker table with warranty,vibration test system meet GB standards |
||

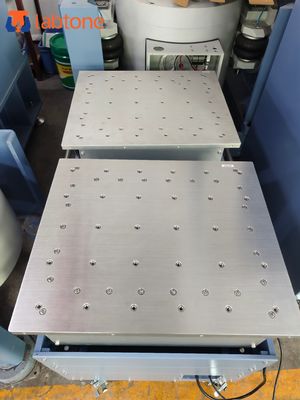

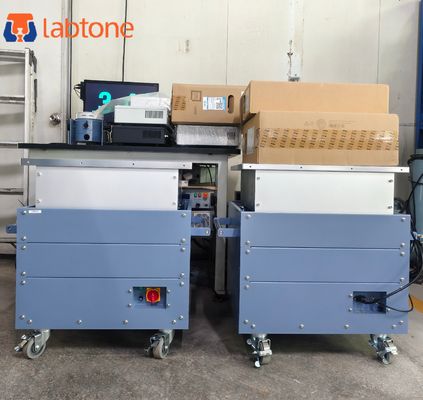

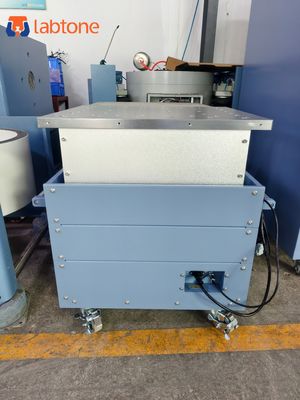

Easy Operation RV3000 Mechanical Vibration Test Systems for Battery Test
Mechanical vibration tester simulates vibration during transport for electronic products, components, spare parts, electromechanical products, and instrumentation, etc. Its vibration and reliability tests comply with the GB, UL, IEC and other standards.
Specification
|
Model
|
RV3000
|
|
Vibration Table (mm) Lx W
|
600 x 500
|
|
Frequency Range
|
5-100 Hz
|
|
Adjustable Amplitude (mmp-p)
|
0-3
|
|
Acceleration Range
|
0-11G
|
|
Max.Payload (kg)
|
130
|
|
Control Interface
|
IBM PC Serial port Rs232 9P/USB Port
|
|
Test Method
|
Fixed frequency,Sweep frequency(linear/logarithm),
multi-stage random
|
|
Waveform
|
Sine Wave
|
|
Vibration Direction
|
Up / Down |
|
Power Supply
|
AC220V 50/60Hz
|
1) Using centrifugal excitation method, low mechanical noise.
2) Using synchronous reverse movement, excellent table evenness.
3) Stepless amplitude adjustment, meet different product test requirements.
4) Use-friendly operation control interface
5) Fixed with shock absorption bags without special foundation.
