商品の詳細:
|
| 正弦力のピーク: | 30 kN （3000 kg.f） | 最大加速: | 100g |
|---|---|---|---|
| 最高の速度: | 2.0 cm/s | 周波数範囲: | 2-2500 Hz |
| 最高の変位: | 100 mm | 電源: | 3-phase AC 380V/50Hz |
| マックス 荷重: | 500kg | 振動コントローラー: | 任意の、掃除された正弦、古典的な衝撃 |
| ハイライト: | 30 KN vibration testing table,sine force vibration equipment,transportation simulation testing table |
||
| Item | Configuration | Qty. |

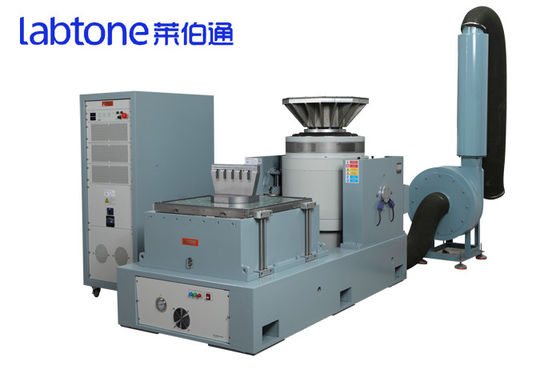

| 1. | Vibration shaker COMBO | |
| A30F44 shaker (including Pneumatic Centering Controller) | 1 set | |
| B752 blower (including silencer and 5M Duct ) | 1 set | |
| Head Expander VT100CM | 1 set | |

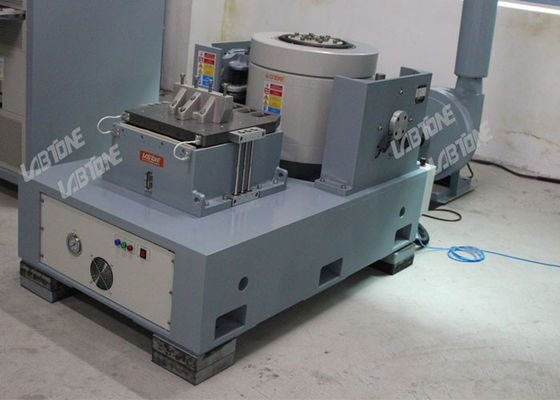

| Horizontal Slip Table HG100M (including Shaker Rotation System) | 1 set | |
| 3. | Shaker Controller | |
|
Vcs5X-4 Shaker Controller Hardware: 4ch input/1ch output, Application: Random/Swept Sine/Classic Shock/RSTD |
1 set | |
| Accelerometers (Including Length 7m low noise BNC-M5 cable) | 2 set | |
| PC System(Including computer mainframe, monitor, mouse and keyboard) | 1 set | |
| 2. | Power Amplifier | |
| LA30k power amplifier(including Field power supply) | 1 set | |
| 3 | Documentation | |
| Operation Manual, Test report, Packing List | 1 set |
| Shaker Specifications A30F44 | |
| Peak Sine (Pk) | 3200Kg.f peak (32KN) |
| Random (RMS) | 3200Kg.f r.ms (32KN) @ISO5344 |
| Shock (Pk) | 6400Kg.f peak (64KN) @6ms |
| Usable Frequency | 1～3000Hz |
| Maximum Displacement (p-p) | 100mm |
| Max. velocity | 2m/s |
| Max. acceleration | Sine:85(833 m/s2)；Random: 60G (588 m/s2) |
| Vertical Load Support | 500 kg |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф442 mm |
| Armature Weight | 35kg |
|
Fundamental Resonance Frequency (Bare table) |
2,500 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
24x M10 inserts |
| Stray Flux Density | ＜10gauss |
| Allowable partial force | 500.N.M |
| Shaker dimensions | 1235mmL×1000mmD×1230mmH |
| Weight of Shaker | About 2800Kg |
| Power Amplifier Specifications LA30k | |
| Rated Output Capacity | 30KVA |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 620mmx960mmx1500mm |
Customer Service:
Warranty: 12 months from delivery, lifelong time maintenance.
After-sale service: feedback within 4-8 hours after getting the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Welcome to contact us with your vibration test inquiry.
Application:
