商品の詳細:
|
| モデル: | G-HSKT35 | テーブルサイズ: | 300 x 300 |
|---|---|---|---|
| 標本の最高重量（kg）: | 30 | 衝撃の脈拍: | 半分の正弦 |
| 加速範囲（m/s2）: | 35000g | 脈拍の持続期間の範囲（氏）: | 0.2~11 |
| ハイライト: | 35000G high acceleration shock tester,mechanical shock testing machine,China shock test system manufacturer |
||

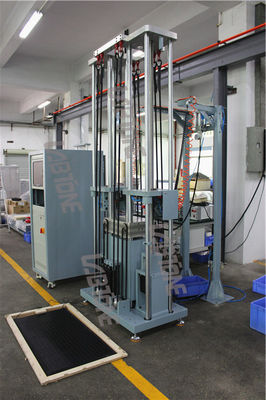

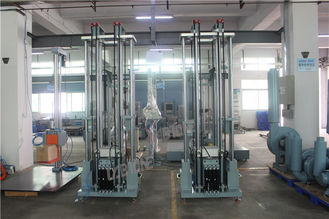

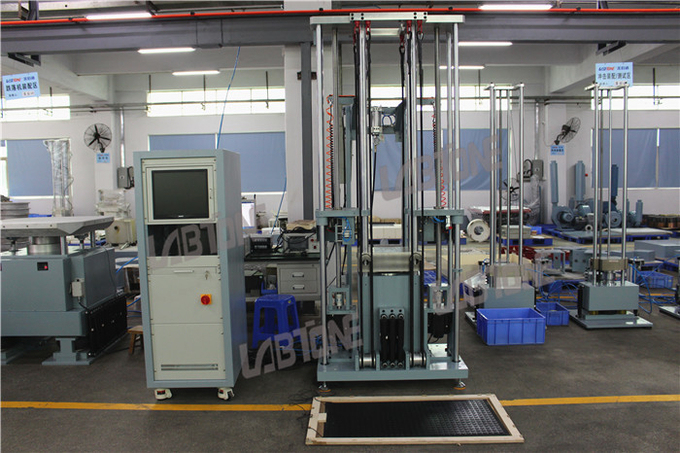

35000G High Acceleration Mechanical Shock Testing Machine Manufacturer China
G-HSKT shock system is a high acceleration impact machine, which is designed to carry out specific high acceleration impact test of micro devices.
The G-HSKT includes a seismic base, a table, a lifting system, guide columns and a brake system, an shock pulse generator and a shock wave measuring instrument.
The specimen is mounted on the table. The table is accelerated to the base by the elastic system, and is stopped by an braking system after it rebounds from the base.
The table is guided on vertical chrome-plated guide columns. The guide rods are also used as the surface against which the table brake system reacts.
Waveform generator devices are typically mounted to the underside of the table and/or the top surface of the base. On impact, the programmers determine the shape of the shock pulse.
Shock Control system for lifting Control of table and braking of table
System Specifications
| Model | G-HSKT30 |
| Table size | 300 mm x 300 mm |
| Base weight | 550kg |
| Table weight | 40kg |
| Machine weight | 1680kg |
| Max. Specimen weight | 30kg |
| Maximum Duration | 11ms |
| Minimum Duration | 0.2ms |
| Lowest Drop Height | 10mm |
| Highest Drop Height | 1500mm |
Product Option Highlights
Customer Service
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Welcome to contact us with your vibration test inquiry.
