商品の詳細:
|
| モデル: | HSKT10 | 衝撃の脈拍: | 半分の正弦 |
|---|---|---|---|
| 加速範囲（m/s2）: | 20----2000 | 脈拍の持続期間の範囲（氏）: | 0.2~11 |
| テーブルサイズ: | 200×250mm | 応用: | セル、バッテリー |
| 名前: | パソコン部品、デジタルカメラ、タブレットなどの衝撃試験を行う衝撃試験システム | ||
| ハイライト: | IEC60068-2-27 shock test system,GB/T2423-2008 shock tester,shock test system with warranty |
||

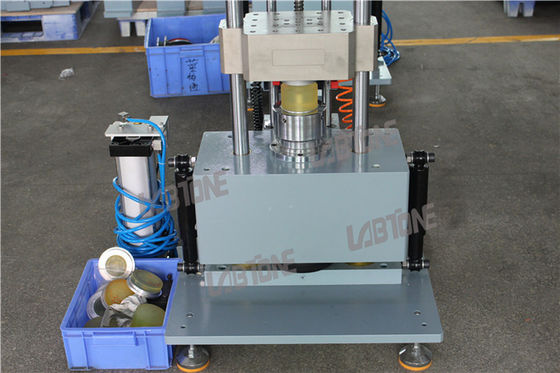

Shock Tester Performs Shock Test for Computer's Parts, Digital Cameras, Tablets
Specification
High Perfermance Shock Test Systems
| Model | HSKT10 | HSKT10D | HSKT15 | HSKT30 | HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
|
Max. Payload (kg) |
10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 |
|||
Standard Shock Test systems
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration (ms) |
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
Company profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
