商品の詳細:
|
| 製品名: | 小型振動シェーカー | 最高。正弦の刺激力: | 550 N （55kg.f） |
|---|---|---|---|
| 周波数範囲: | 5～5000Hz | マックス。加速度: | 30 g |
| 最高。広さ: | 20mmpp | マックス。速度: | 1.3 m/s |
| シェイカーの寸法: | 380*330*445mm | ||
| ハイライト: | compact electrodynamic vibration shaker,laboratory vibration shaker for sensor calibration,lightweight vibration shaker for mechanical testing |
||

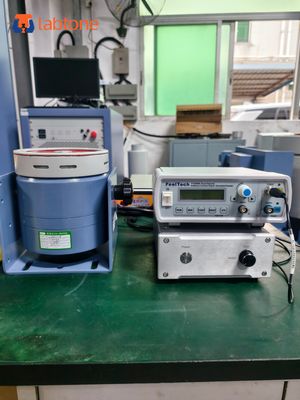

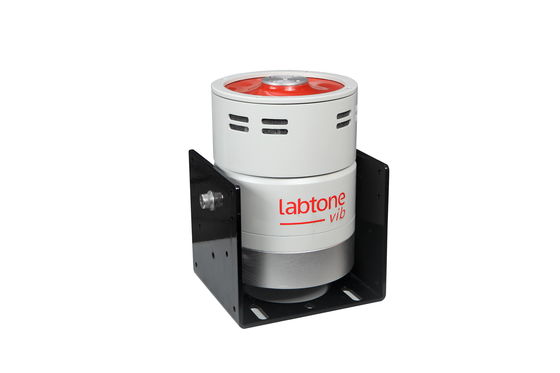

Compact Vibration Shaker System For Laboratory Vibration Testing
ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.
Specifications
| Model | ET55 |
| Rated Sine Exiting Force | 55kg.f(550N) |
| Rated Random Exiting Force | 55kg.f(550N) |
| Frequency Range | 5-5000Hz |
| Max. Acceleration | 30G |
| Max. Amplitude | 10mm p-p |
| Max. Velocity | 1.3m/s |
| Armature Mass | 1.8kg |
| Machine Dimension | 380*330*445mm |
| Cooling Type | Forced cooling |
| Electrical Supply | Power AC220V ±10% 50Hz |
Features
FAQ

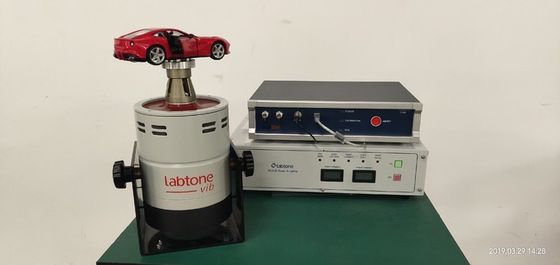

How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.
What are those resonances?Are they bad?
Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
Service
Pre-Sales Service
1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.
After-Sales Service
1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.
