商品の詳細:
|
| 製品名: | バンプ・衝撃試験機 | ペイロード: | 100kg |
|---|---|---|---|
| 波形: | 半鼻脈 | 加速範囲: | 5-100 G |
| パルス期間: | 6〜18ms | バンプの繰り返しの頻度: | 1-120 |
| 低下の高さの範囲: | 5~120mm | 最高の速度の変化: | 2.2m/s |
| テーブルサイズ: | 700*800 mm | ||
| ハイライト: | SKM Series bump test machine,bump test machine for electronic components,electrical products bump test machine |
||

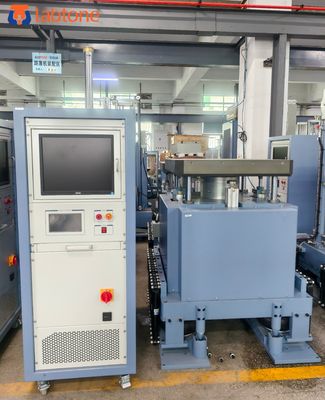

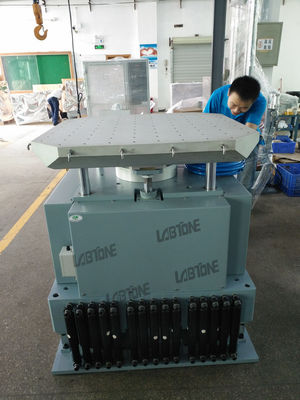

LCD Display Bump / Impact Test Machine For Reliability Shock Testing With IEC Standard
Applicable
Specifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*800 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
