商品の詳細:
|
| 加速範囲: | 0-11g （ピーク） | マックス 荷重: | 50 kg |
|---|---|---|---|
| テーブル次元: | 600 × 500 mm | 頻度: | 5〜80 Hz |
| 力: | AC 220V | 保証: | 12か月 |
| ハイライト: | Mechanical shaker table for vibration testing,Electronic components shaker table 50kg payload,Vibration testing table 5-80 Hz frequency |
||

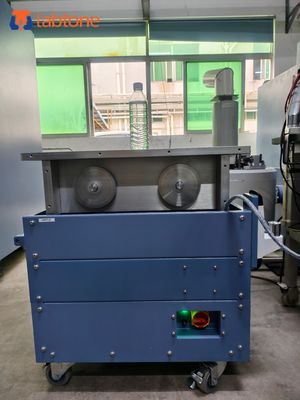

5-80 Hz Mechanical Vibration Table For Electronic Components Shake Testing
Application
Mechanical vibration test machine applies to electronic products, components, module, mechanical and electrical products, instruments and meters and other transportation vibration simulation test. It meets the standards of GB, UL, IEC vibration test and reliability test.
Specifications
| Model | RV3000 |
| Table Size (L*W) | 600*500mm |
| Frequency Range | 5-80Hz |
| Amplitude Range | 0-3mm p-p |
| Acceleration Range | 0-11G |
| Max.Payload | 50 kg |
| Control Interface | (compatible interface)IBM PC Serial port Rs232 9P/USB port |
| Test Method | Fixed frequency.sweep frequency(linear/logarithm),multi-stage random |
| Waveform | Sine Wave |
| Vibration Direction | Vertical |
| Power Supply | AC 220V/50Hz |
| Size | 765*525*690mm |
| Weight | 250kg |
Features
1, Using centrifugal excitation method, low mechanical noise.
2, Using synchronous reverse movement, excellent table evenness.
3, Stepless amplitude adjustment, meet different product test requirements.
4, Use-friendly operation control interface.
5, Fixed with shock absorption bags without special foundation.
