商品の詳細:
|
| テーブルサイズ: | 50 x 60 cm | 最高。標本の重量: | 100 kg |
|---|---|---|---|
| 衝撃の脈拍: | 半シナス ソー歯 トラペゾイドショックパルス | 保証期間: | 取付けの後の1年 |
| 電源: | 3相 AC 380V 50Hz | ||
| ハイライト: | SKT Series shock test system,shock test system for unpackaged products,half-sine saw-tooth shock tester |
||

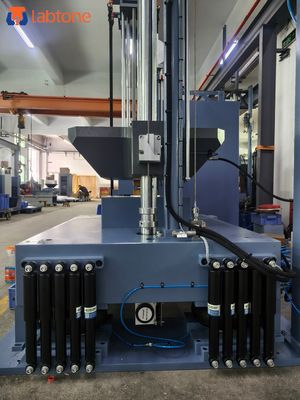

PC Programmed Shock Test Equipment With Half-Sine, Saw-Tooth, Trapezoid Shock Pulse
UN_38.3 Lithium Battery Test Standard.pdf
Technical Specifications
| Model | SKT50 | SKT100 | SKT200 | SKT300 | SKT500 | SKT1000 | SKT1500 | |
| Table size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 100 | 100 | 100 | 60 | 50 | 50 | 50 | |
| Pulse Duration (ms) | half sine | 30~1 | 30~2 | 30~2 | 20~3 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | |
| Machine Dimension(cm) | 82x90x195 | 120x105x245 | 130x120x260 | 150x130x260 | 200x160x300 | 230x180x310 | 250x250x310 | |
| Controller cabinet Dimension(cm) | W55 x D50 x H80 | |||||||
| Machine Weight(Kg) | 1050 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Utility | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Requirements | ||||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
|||||||
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Customer Service
Service timeliness
When a fault report is received from customer〈including telephone, fax and email〉:
LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.
