商品の詳細:
|
| テーブルサイズ: | 800 × 800 mm | ペイロード: | 200 kg |
|---|---|---|---|
| 波形: | 半正弦波 | 加速範囲: | 5-100 G |
| パルス期間: | 6～18ヶ月 | バンプレート: | 調節可能 1〜2ブンプ/秒 |
| 低下の高さの範囲: | 5~120mm | 最高の速度の変化: | 2.2m/s |
| ハイライト: | Bump test machine with GJB150 compliance,Shock test machine for MIL STD 810F,Bump tester meeting IEC68 2 27 standards |
||

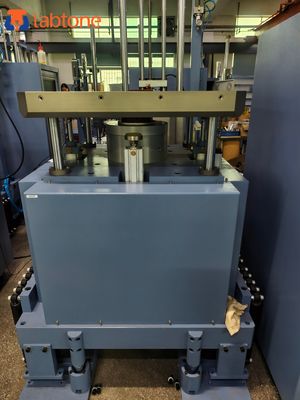

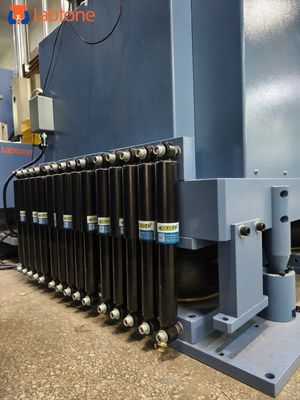

Bump Shock Test Machine for Battery Test 10G 11ms Frequency Range 1-120Hz
SKM series shock / bump testing systems are a combination of the bump test and shock test function devices. Simple structure, user-friendly control, high reliability and good waveform. With high efficient continuous bump test, it allows the end-user to run up to 60 bump tests per minute and 10 shock tests per minute. SKM series can perform single-shock, continuous shock and interval shock. It also realizes various shock type, good repeatability, low-energy design, non-pollution, environmental protection, unnecessary special foundation.
SKM series can perform half sine waveform, final peak saw-tooth waveform shocking test etc. It is compliant to international test specifications including GJB150, GJB360, GJB548, GB/T2423, GJB1217, JJG497, MIL-STD-810F, IEC68-2-27 and etc..
Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
