商品の詳細:
|
| 正弦力:: | 3200kg.f (32kN) | 衝撃力:: | 6400Kg.f (64KN) |
|---|---|---|---|
| ランダムフォース:: | 3200kg.f (32kN) | 最大速度:: | 2.0m/s |
| 変位:: | 51mm | ペイロード：: | 400kg |
| ハイライト：: | ISTAランダム振動試験機、ソフトウェア正弦振動試験機、衝撃振動試験機 | ||
| ハイライト: | ISTA random vibration test machine,vibration test system with software,sine random shock test equipment |
||

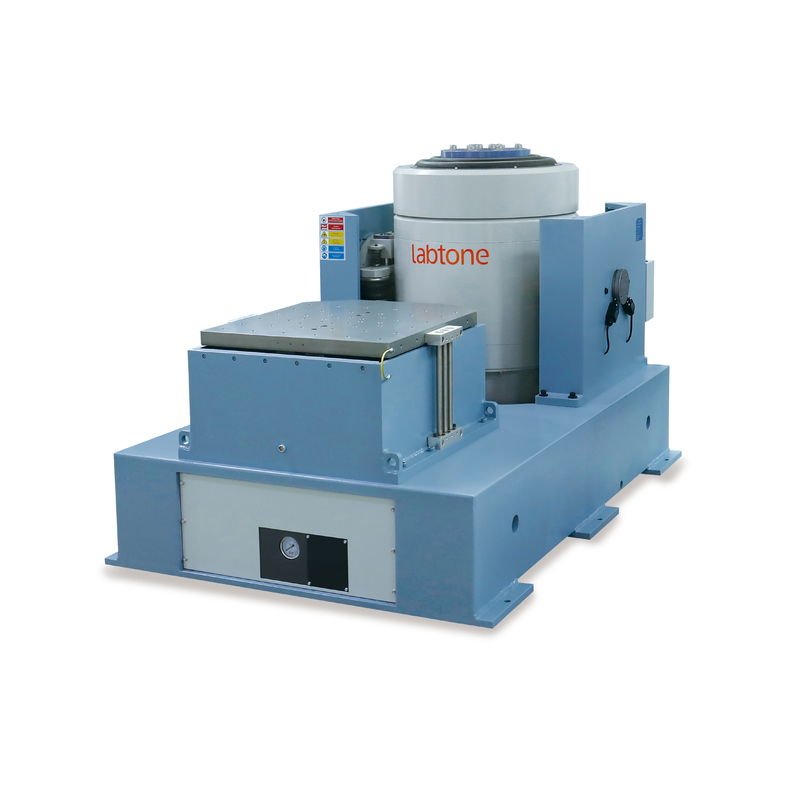

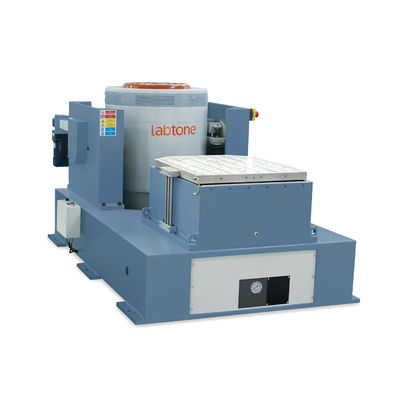

Vibration Test System Description
A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection
| Item | Configuration | Qty. |
| A | Vibration shaker | |
| A11S24 shaker ((including Pneumatic Centering Controller) | 1 set | |
| B402S blower (including silencer and Duct ) | 1 set | |
| Horizontal slip table HG50M | 1 set | |
| Head Expander VT50CM | 1 set | |
| B | Power Amplifier | |
| LA10K power amplifier(including Field power supply) | 1 set | |
| C. |
Vibration Controller-Vcs-2 (Including Hardware and Control Functions Program software CDS |
|
| Accelerometer (Including Length 7m low noise BNC-M5 cable) | 1 set | |
| Computer(Including keyboard, mouse and monitor) | 0 set | |
| D |
Documentation Operation Manual, Test Report, Packing List |
1 set |
| E | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
Features
| Shaker Specifications A30F44 | |
| Peak Sine (Pk) | 3200Kg.f (32KN) |
| Random (RMS) | 3200Kg.f (32KN) @ISO5344 |
| Shock (Pk) | 6400Kg.f (64KN) @6ms |
| Usable Frequency | 1～3000Hz |
| Maximum Displacement (p-p) | 100 mm |
| Max. velocity | 2m/s |
| Max. acceleration | 85G (833 m/s²) |
| Vertical Load Support | 500 kg |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф440 mm |
| Armature Weight | 32 kg |
|
Fundamental Resonance Frequency (Bare table) |
2,500 Hz (nom.) +/- 5% |
| Armature Foot-point M10 | 16pcs PCD 200/400mm |
| Stray Flux Density | ＜10gauss |
| Allowable partial force | 500.N.M |
| Overall dimension | 1270L×1000D×1230H mm |
| Total Weight | About 2000Kg |
| Power Amplifier Specifications LA30K | |
| Rated Output Capacity | 30 KVA (120Vrms/300Arms) |
| Signal to Noise Ratio | >65 dB |
| Amplifier Efficiency | > 90% |
| Interlock Protection | 600L×900D×1750H mm |
| Rated Output Capacity | 490Kg |
| Interlock Protection | ●Shaker Over Travel ●Shaker Over Temp ●Shaker Air Pressure ●Shaker Oil Pressure ●Shaker E Stop ●Amplifier E Stop ●Transformer Over Temp ●UART Power ●PM Over Temp ●PM Over Current ●PM Drive Power ●Input Under Voltage ●Input Over Voltage ●Output Over Voltage ●Output Over Current ●Cooling Fan ●Power Over Temp ●Logic Fault |
Size(mm): 300 x 300-1500x1500
Material: Aluminium /Magnesium
The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.
Material: Aluminium /Magnesium
According to the customer's actual demand, we can offer different shapes of fixture, such as three-dimensional square,L, and T shape.
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
