商品の詳細:
|
| サインフォース: | 50kg.f （500N） | ランダムな力: | 38kg.f （380N） |
|---|---|---|---|
| 変位: | 10mm | 最大加速: | 37g |
| 効果的負荷: | 10kg | Max.Velocity: | 1.2 m/s |
| 名前: | 交通機関のシミュレーションの任意振動試験のための小さい振動試験機械 | ||
| ハイライト: | vibration table test equipment,vibration exciter for scientific research,small test item vibration system |
||

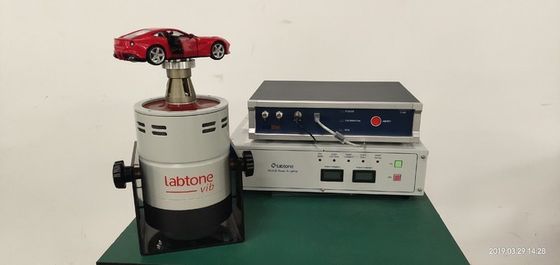

Vibration Test Equipment Vibration Exciter for Scientific Research, Small Test Item
Minitype Vibration Test System
With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.
Features:
Composition:
Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor

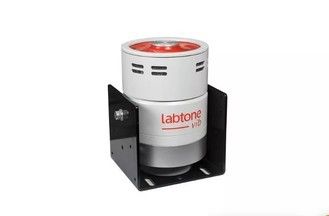

| EV50 electrodynamic shaker | |
| Max. sine exciting force | 50Kg.f peak (500N) |
| Max. random exciting force | 38Kg.f r.ms (380N) |
| Frequency range | 2～3800Hz |
| Max. displacement | 10 mm p-p |
| Max. velocity | 1.2m/s |
| Max. acceleration | 37G (380 m/s2) |
| Effective load | 10kg |
| Vibration isolation frequency | 2.5 Hz |
| Diameter of armature | Ф170 mm |
| Mass of armature | 1.2kg |
| Shaker dimensions | DIA 270 * H195mm |
| Weight | About 45Kg |
| VA-ST-05 Analog power amplifier | |
| Output power | 800va |
| Output voltage | 38VRMS |
| Amplifier cabinet dimension | 430mm×200mm×500mm |
| Servo protection system | |
| Functions: | FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP |
| vibration controller | |
| Hardware configuration: | 2-channel inputs, 1-channel outputs |
| Control computer | Acer |
| Function |
1,Sine Control 2,Ramdom Control
Language:English,Chinese |
| Operating system | Microsoft Windows 7/8/10 |
| Acceleration sensor LAB |
Frequency range:1—12KHz Sensitivity: 30 ±10 pC/g Temperature range: -40℃ to 160℃ |
| BL-120 cooling blower (including silencer) | |
| Cooling method | Air cooling |
| Blower power | 200W |
| Electrical requirements: | |
| Power supply | AC 220V ±10%, 50Hz |
| Ground resistance | ≤4Ω |
Presales:
In-Sales:
.
Detailed Pictures
