商品の詳細:
|
| 名前: | ランダムVIブレーションテストシステムは,MIL-Std-810FとMIL-Std-810G規格を満たしています. | 正弦: | 1000kg.f （10kN） |
|---|---|---|---|
| ショック: | 2000kg.f （20kN） | 広さ: | 51mm |
| 最高の速度: | 2.0m/s | 冷却方法: | エア冷却 |
| ハイライト: | Vibration test system 600 kgf force,Vibration test system 2-3000 Hz,High-performance vibration test system |
||

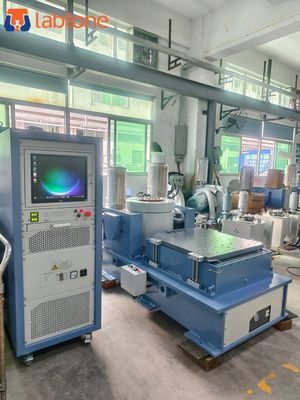

Random Vibration Test System Meets MIL-Std-810F and MIL-Std-810G Standards
Vibration Test System Description
A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection
Vibration Test SystemSpecification:
|
Model
|
EV103
|
EV203
|
EV106
|
EV206
|
EV210
|
EV220
|
|
Frequency(Hz)
|
2-4000
|
2-2500
|
2-3000
|
2-3000
|
2-3000
|
2-2500
|
|
Max Exiting Force(kg.f)
|
300
|
300
|
600
|
600
|
1000
|
2000
|
|
Max. Displacement
(mmp-p)
|
25
|
38
|
25
|
50
|
50
|
50
|
|
Max. Acceleration(g)
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Max. Velocity(cm/s)
|
200
|
120
|
180
|
200
|
200
|
200
|
|
Payload(kg)
|
110
|
120
|
200
|
200
|
300
|
400
|
|
Armature Mass(kg)
|
3
|
3
|
6
|
6
|
10
|
20
|
|
Armature Diameter(mm)
|
φ150
|
φ150
|
φ200
|
φ200
|
φ240
|
φ320
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Vibration Generator Weight(kg)
|
460
|
460
|
720
|
920
|
1100
|
1600
|
|
Vibration Generator Dimension L*W*H(MM)
|
750*560*670
|
750*555*670
|
800*600*710
|
800*600*710
|
845*685*840
|
1200*870*1100
|
|
Power Amplifier
|
Amp3k
|
Amp3k
|
Amp6k
|
Amp6k
|
Amp12k
|
Amp22k
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Power Amplifier Weight(kg)
|
250
|
250
|
320
|
320
|
350
|
500
|
|
Power Amplifier Dimension L*W*H(MM)
|
800*550*1250
|
|||||
|
Utility Requirements
|
3-phase AC380V ±10% 50Hz
|
|||||
|
Aggregate Capacity(KW)
|
8
|
9
|
18
|
20
|
25
|
35
|
| Item | Configuration | Qty. |
| 1. | Vibration shaker | |
| VG1000-50 electromagnetic vibration shaker | 1 set | |
| BL-1000 cooling blower (including silencer) | 1 set | |
| Automatic centering system of armature | 1 set | |
| 2. | Power Amplifier | |
| Amp12K digital switching power amplifier | 1 set | |
| Servo protection system | 1 set | |
| Filed power supply | 1 set | |
| 3. | Digital vibration controller (integrated instrument cabinet) | |
| vibration controller | 1 set | |
| System acceleration sensor | 1 pcs | |
| Computer | 1 set | |
| Control software installation CD | 1 set | |
| 4. | Accessories | |
| Connection Cables & Ducts Hose | 1 set | |
| Operation instructions, inspection report, certificate, maintenance manual, etc. | 1 set | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
1) The rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High-efficiency D class power switching, 3-sigma peak current, low power consumption, and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
