商品の詳細:
|
| 名前: | JIS D1601-1995規格に準拠した自動車部品用ランダム振動試験システム | 正弦: | 2000kg.f （20kN） |
|---|---|---|---|
| 衝撃Froce: | 4000kg.f （40kN） | 変位: | 100mm |
| 最大加速: | 90g | ペイロード: | 500kg |
| 頻度: | 2～3000Hz | ||
| ハイライト: | automotive vibration test system,JIS D1601 vibration tester,random vibration test equipment |
||
Random Vibration Test System For Automotive Parts With JIS D1601-1995 Standards
Random Vibration Test SystemSpecification:
|
Model
|
EV103
|
EV203
|
EV106
|
EV206
|
EV210
|
EV220
|
|
Frequency(Hz)
|
2-4000
|
2-2500
|
2-3000
|
2-3000
|
2-3000
|
2-2500
|
|
Max Exiting Force(kg.f)
|
300
|
300
|
600
|
600
|
1000
|
2000
|
|
Max. Displacement
(mmp-p)
|
25
|
38
|
25
|
50
|
50
|
50
|
|
Max. Acceleration(g)
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Max. Velocity(cm/s)
|
200
|
120
|
180
|
200
|
200
|
200
|
|
Payload(kg)
|
110
|
120
|
200
|
200
|
300
|
400
|
|
Armature Mass(kg)
|
3
|
3
|
6
|
6
|
10
|
20
|
|
Armature Diameter(mm)
|
φ150
|
φ150
|
φ200
|
φ200
|
φ240
|
φ320
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Vibration Generator Weight(kg)
|
460
|
460
|
720
|
920
|
1100
|
1600
|
|
Vibration Generator Dimension L*W*H(MM)
|
750*560*670
|
750*555*670
|
800*600*710
|
800*600*710
|
845*685*840
|
1200*870*1100
|
|
Power Amplifier
|
Amp3k
|
Amp3k
|
Amp6k
|
Amp6k
|
Amp12k
|
Amp22k
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Power Amplifier Weight(kg)
|
250
|
250
|
320
|
320
|
350
|
500
|
|
Power Amplifier Dimension L*W*H(MM)
|
800*550*1250
|
|||||
|
Utility Requirements
|
3-phase AC380V ±10% 50Hz
|
|||||
|
Aggregate Capacity(KW)
|
8
|
9
|
18
|
20
|
25
|
35
|
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Type Selection Formula of Vibrator and Structural Diagram of vibration shaker
① Test conditions provided by your company;
② Test types: sine sweep; random;
③ Frequency response range: 2 to 3000Hz
④ Formula: A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2
F=M(kg) ×A(g)
1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
Customer Services
Presales:
In-Sales:
After-Sales:

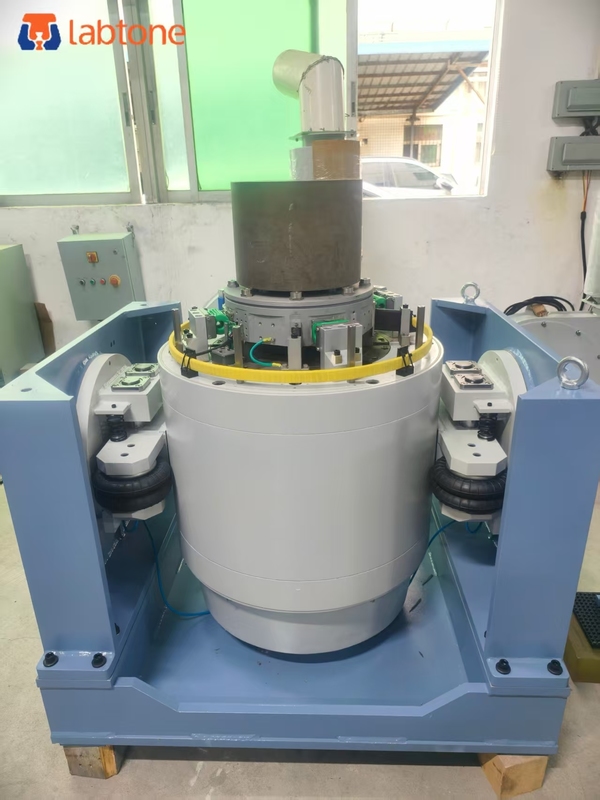

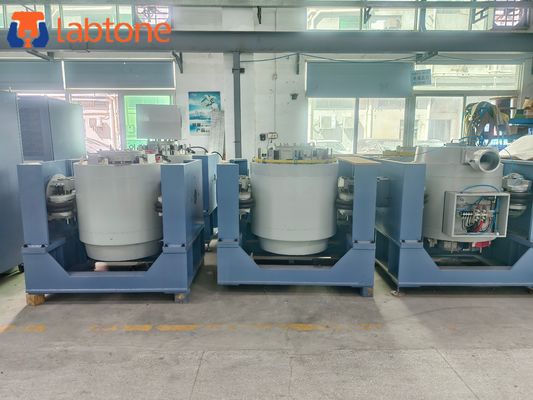

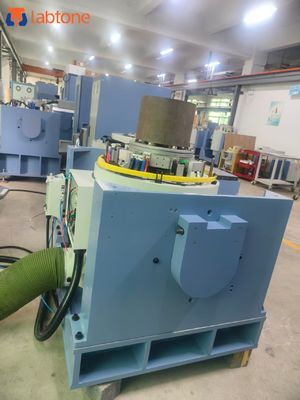

Random Vibration Test System Images:
