| 最大。正弦力: | 6000 kg.f (60kN) | 縦のペイロード: | 500 kg |
|---|---|---|---|
| マックス。加速度: | 100g | 電源: | AC 380V 50Hz |
| シェーカーのサイズ: | 1680mmL×1180mmD×1350mmH | アーマチュアの直径: | フ440 mm |
| ハイライト: | 60KN vibration test equipment,ISO16750 certified vibration tester,laboratory vibration system for vehicles |
||
60KN Laboratory Vibration Test Equipment For New Energy Vehicle Parts ISO16750
Introduction to Vibration Test Equipment:
EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.
A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.
Vibration Test Equipment Specifications:
| Shaker Specifications A50T44 | |
| Peak Sine (Pk) | 6000Kg.f peak (60KN) |
| Random (RMS) | 6000Kg.f r.ms (60KN) @ISO5344 |
| Shock (Pk) | 12000Kg.f peak (120KN) @6ms |
| Usable Frequency | 1～2700Hz |
| Maximum Displacement (p-p) | 76mm (3inch) intermittence,64mm (2.5 inch) continuous |
| Max. velocity | 2.0m/s |
| Max. acceleration | 100G (980 m/s2) |
| Vertical Load Support | 500 kg (2000kg is an optional) |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф440 mm |
| Armature Weight | 60kg |
|
Fundamental Resonance Frequency (Bare table) |
2,100 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
16 stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Shaker dimensions | 1680mmL×1180mmD×1350mmH |
| Weight of Shaker | About 4700Kg |
Other models: EV203-EV260
| Model | EV203 | EV206 | EV210 | EV220 | EV232 | EV240 | EV250 | EV260 |
| Frequency Range(Hz) | 1－2500 | 1-3000 | 1-3000 | 1-3000 | 1-3000 | 2-2500 | 1-2500 | 1-2700 |
| Max.Force(kg.f) | 300(2.94) | 600(5.88) | 1000(9.8) | 2200(21.56) | 3200(31.36) | 4000(39.2) | 5000(49) | 6000(58.8) |
| Max.Displacement (mmp-p) |
40 | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 |
| Max.Acceleration(G) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Max.Velocity (cm/s) | 180 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Max.Load(kg) | 120 | 200 | 200 | 300 | 500 | 500 | 800 | 1000 |
| Vibrator Model | VG300/40 | VG600/50 | VG1000/50 | VG2200/50 | VG3200/50 | VG4000/50 | VG5000/50 | VG6000/50 |
| Armature Weight(kg) | 3 | 6 | 10 | 22 | 32 | 40 | 50 | 50 |
| Armature Dia.(mm) | ￠150 | ￠200 | ￠240 | ￠320 | ￠400 | ￠440 | ￠445 | ￠445 |
Vibration Test Equipment Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries of Vibration Test Equipment:
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.
Features of Vibration Test Equipment:
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM, Design service,Buyer label |

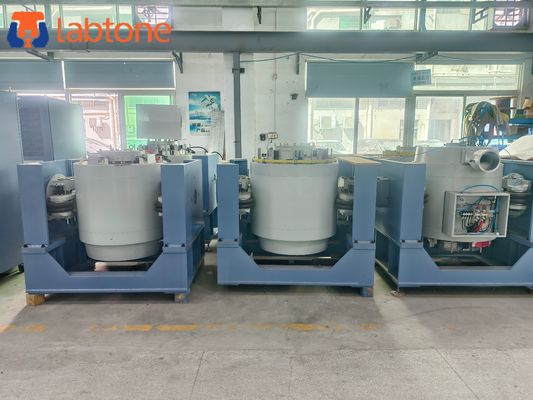

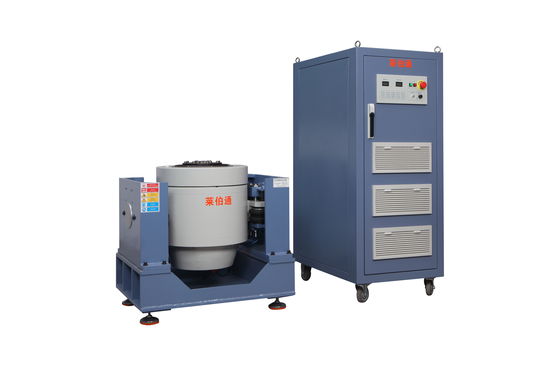

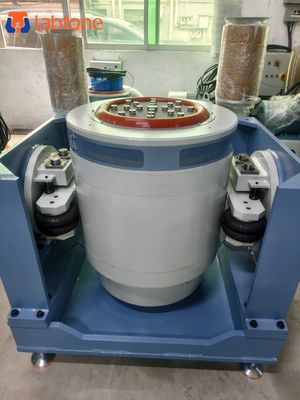

Detailed Pictures:
